Cosma Smart 3 - Automatic cutting machine for growth of your garment business

Specifications

Maximum cutting height	3cm (after compression)
Effective cutting width	180 - 225 cm (dimensions) other widths available on request)
Effective cutting length	210 cm
Cutting speed	120 meters/min
Installed power	19 kw
Average Power consumption	6-7 kw
Function temperature	from + 10 ° C to + 40 °C
Humidity	30% to 80%
Voltage	400V 3Ph, 50-60Hz
Compressed air	150 L/min 7 BAR
Unloading Conveyor belt	200 cm
Type of fabric used	for a wide range of applications including: MTM Orderds, low order quantities, applique cutting and special fabric cutting.
Field of use	Made to Measure, Garment industry; Footwear Cutting; Backpack; hand bag; Upholstery (sofa; car seat); Manufacturing industry of medical protective equipment (clothes, masks); aerospace, Home textiles and several industry
Knife sharpening system	Cosma single sharpening system sharpens the knife smoothly and evenly leading the usage of the knife upto 1 year plus.
Knife cooling system	Keeps the knife cool, to cut synthetic materials such as polyester, Nylon and other materials
Control language	multi language
Made in	Italy

Cosma Smart 3 Automatic cutter machine is one of the leading high-end fabric cutting machines nowaday, manufactured according to the most modern technology lines in Italy.

Cosma Smart 3 is flexible to cut a variety of fabrics from single ply to 3cm compressed height, used for low, medium order quantities and special applications like MTM (made to measure) orderds, shoes, bags, applique cutting and other industrial fabrics cutting. While achieving fabric saving, high accuracy, less time with higher cutting efficiency, product quality and competitiveness in the era of industrial revolution 4.0.

Cosma Smart 3 Automatic cutter is one of the leading high-end fabric cutting machines nowaday

Advantages of Cosma Smart 3 cutting machine

Ultra-fast fabric cutting speed 120m/min
The thickness of the layers after compression is 3 cm
Software intelligent cutting automatically recognizes marker starting points, curves, straight lines, corners, Notches, drill holes and adjusts the speed automatically at suitable speed for high quality.
Cosma Smart 3 can cut the parts that are close together without any gap ( 0 buffer) save fabrics from 1-3%
Using SMS (Smart moving and cutting system) helps to move and cut at the same time without stopping, this will help to save cutting time and increase an additional 1-2% of the productivity.
Multi-language software, easy to adjust, one-time setting of cutting parameters of different fabrics, viewing machine performance reports anytime, anywhere.
The machine automatically adjusts the speed to cut through the system of smart sensors that can control the head to run faster when cut in a straight line and reduce speed at certain % during cutting on the curve.
The machine uses a strong vacuum pump controlled by the inverters, allows the machine to reach the desired vacuum level for stronger suction of fabric and can cut with high-precision from top to bottom. The inverter controls variable vacuum so the machine can cut low, medium, and high plies on the same machine in a click of the profile settings.
Using a linear motion guide system, it is extremely precise and durable.
Knife cooling device that ensures the knife is always at a normal temperature when cutting some complex melting fabrics due to heat.
Knife sharpening systems have a long life, low cost, can adjust the knife sharpening angle as desired, ensuring the knife has high durability, stable cutting quality. One grinding stone can use upto 1 year plus.
The bristles are specially designed with high durability, 5x5cm in size to help stabilize the fabric layers, ability to cut low, medium and high ply fabrics in the same machine.
Energy saving: thanks to the vacuum inverter systems that can automatically adjust the vacuum, depending on the ply height so the consumption of electricity is very less.
Notifications for maintenance like daily, weekly, and hourly maintenance of the machine; notify the time and date of changing knives and sharpening stones.
Cost virtual low maintenance: consume very less spare parts and consumables
The machine use the latest electrical and electronic devices so the service can be done through the remote support, to repair and update the latest version of software
The machine uses a PNC controller, from Parker USA, which is faster and easy to upgrade.
Standard inputs: ISO, CUT, suitable for all software marker

Cosma Smart 3 can cut the parts that are close together without any gap ( 0 buffer) save fabrics from 1-3%

Benefits when using Cosma Smart 3 Cutter

+ Reduction of time fabric cutting time

The Cosma Smart 3 cutter has a cutting speed of 120 meters per minute to help speed up the fabric cutting process. Moreover, thanks to the intelligent software and hardware systems that help to cut a variety of fabrics and applications, the intelligent sensor system and the smart moving and cutting system (SMS) makes the cutting process fully automatic with high accuracy, ensuring the cut panels have smooth finishing with high quality, ensuring the quality from top to bottom remains same.

+ Saving human resources

Smart 3 series cutters are user friendly, can be handled by the single operator to cut and use the same operator to collect the cut parts, since the machine is completely automatic and cuts the window and moves automatically, so there is no extra manpower required in the cutting process.

+ Increase the quality of products

Cosma Smart 3 series use a variety of sensors to manage the cutting process with high accuracy, smart knife system to limit cutting errors, and smooth cuts. As a result, the quality of the product is improved.

+ Saving fabric consumption

Cosma Smart 3 fabric cutter can cut the pieces with 0 Gap between the parts, Assisting businesses in making the most of their fabric and reducing the amount of fabric that goes unused.

+ Save costs, improve production efficiency

Cosma Smart 3 machines help save energy, reduce the cost of maintenance, repair and replacement of spare parts. Besides, data reporting mode connects directly with management software to help managers easily control and plan reasonable production activities to maximize labor productivity.

Cosma Smart 3 machines help save energy, reduce the cost of maintenance, repair and replacement of spare parts for businesses

Cosma Technology specializes in manufacturing Cosma Smart 3 fabric cutters according to international quality standards for garment companies worldwide. With modern equipment, professional production process and skilled technical team, Cosma has been bringing high quality products, long service life, on-time delivery and reasonable price to customers.

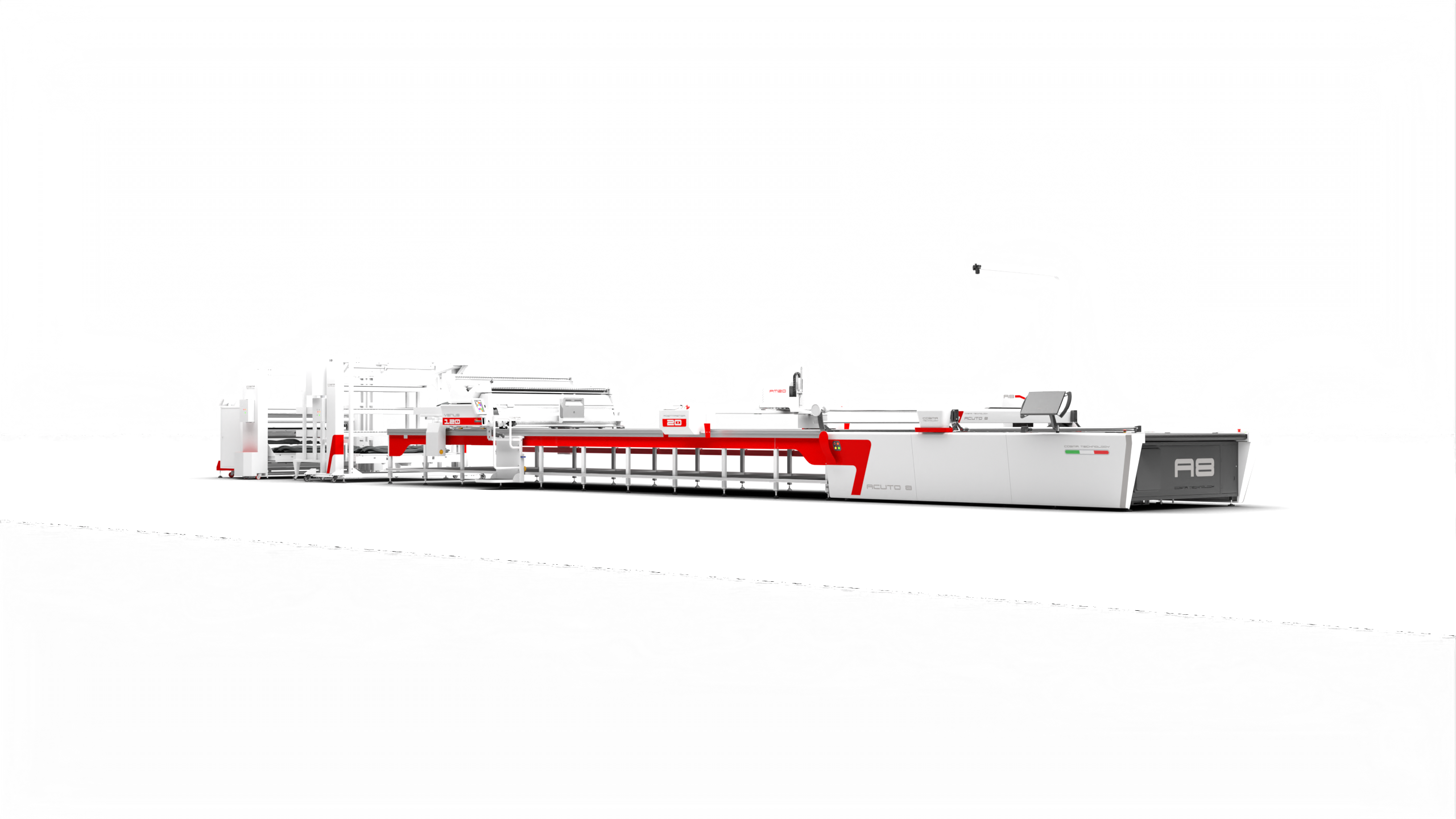

Cosma automatic cutting room operation line improves production processes, operates smoothly and faster, eliminates downtime, controls product quality, saves a lot of costs in the production process such as: manpower, time, discarded fabric, electricity, .... Solutions Cosma brings include: Automatic cutting machine, Automatic fabric loaders, Automatic fabric spreading machine, Automatic labeling machine, and spreading tables used in sewing factories: Conveyor table, Standard Table, Air blowing Table. And smart Cosma's softwares: CAD Solution: marker making software, pattern design software, Digital Cutting Room Software, Cut Planning Software COPS. They help that the data will be connected and linked between cut parts, so you can easily monitor and manage anywhere: the performance of machines, of workers, productivity, maintenance, down time production and the efficiency of the factory….

Improve your factory productivity today! We are ready to help you! With more than 20 years of experience in the garment industry, we will always accompany your business to develop the best, most suitable solutions, bringing the best benefits and efficiency.
